Latest Upgrades:
Top mounted，one ultra-thin, as thin as 12.6cm
Mesh diamond-shaped air inlet design.
High-definition digital display, multi-speed and multi-mode adjustable
QR code on the interior panel, you can scan the code to get installation tutorials, product instructions and after-sales contact information.
New streamlined structure design,fashionable and luxury Interior;
Reticulated rhombus air inlet design;
Dynamic appearance and effectively reduce wind resistance;
Fourth generation variable frequency scroll high efficiency compressor, silent High Efficiency;
Arbitrarily set temperature;

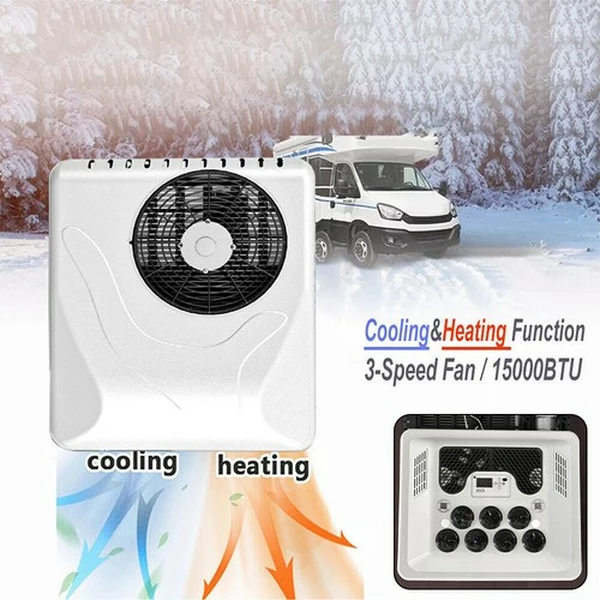

Dual-purpose machine,summer cooling,Winter heating;
360 can be rotated out of trend, Wind guide at any angle large ventilation area.
Intelligent energy saving,more power saving and comfortable;
Lossless installation.
Features:

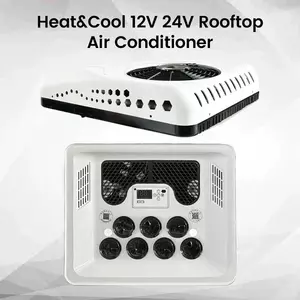

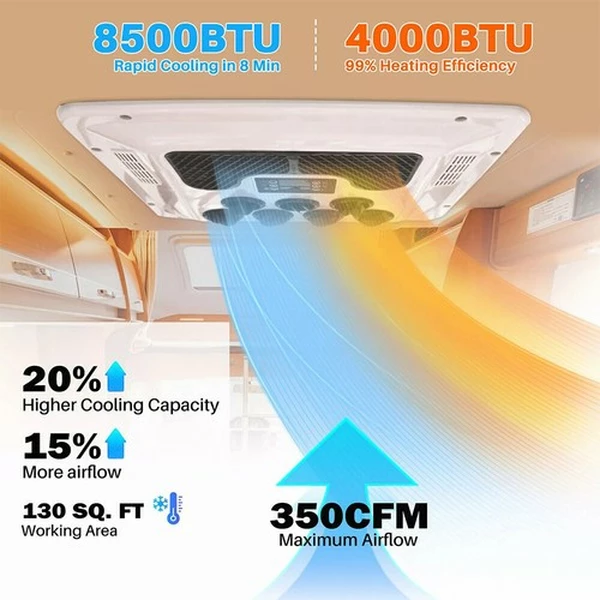

1. This RV Rooftop Air Conditioner Provides 10000BTU Cooling & 3500BTU Heating capacity, being able to provide a comfortable time both in Summer and Winter parking using.

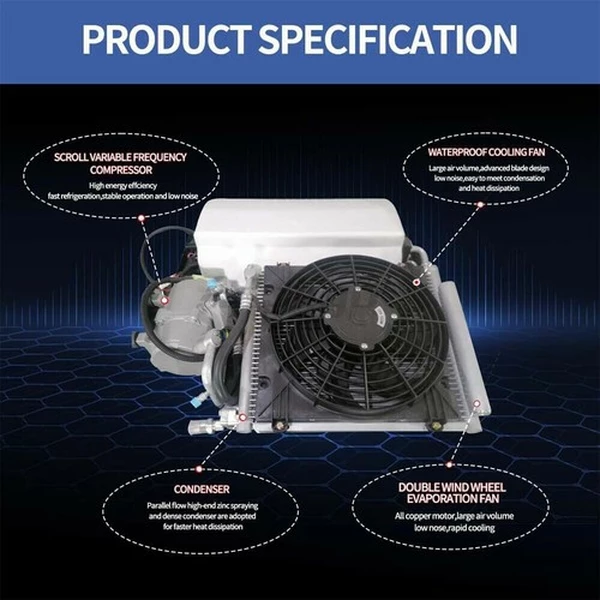

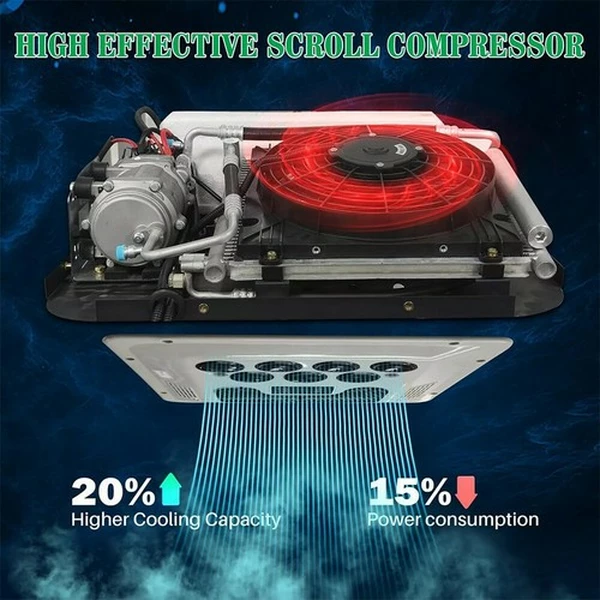

2. The Outdoor Unit adopts a 20CC Inverter Srcoll Compressor.It monitors the condition of the battery and operate and varies the frequency accordingly, thereby reduces unnecessary energy consumption.

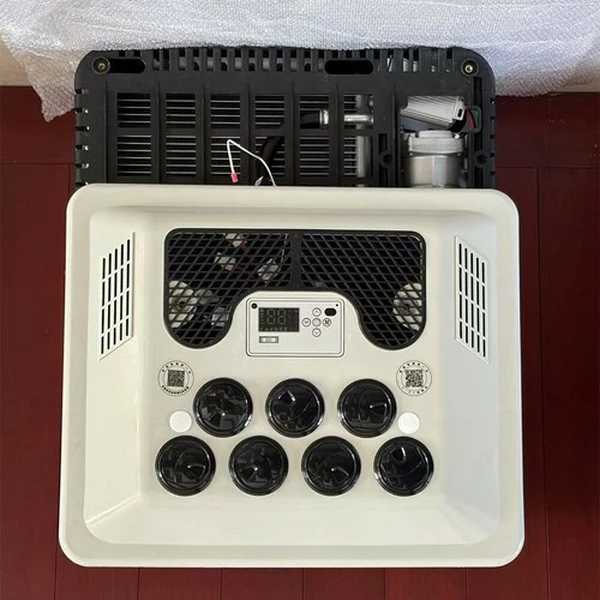

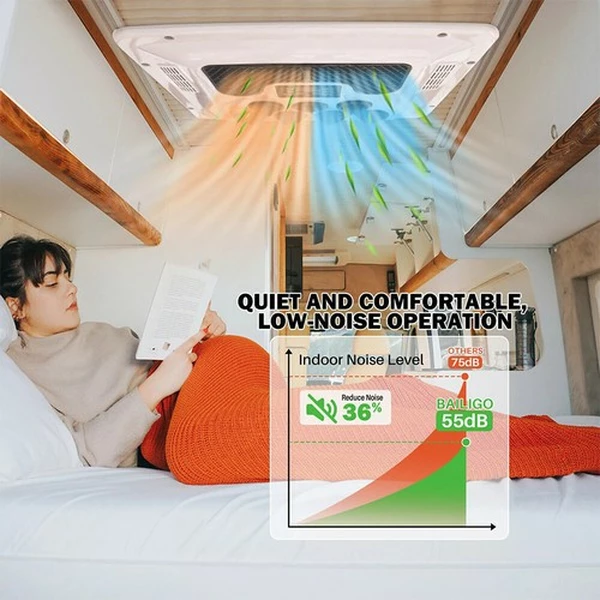

3.The seven holes rotary air outlet can adjust the air outlet angle at will for low decibel operation
4.Four modes optionable,adjustable wind speed in 5 gears.
5.This 12 Volt DC Air Conditioner can be able to be provided energy from either engine or an external battery. And it remains generating even if the car engine is off.
6.Made of ABS material, the shell is with good resistance to deformation and with UV (deep ultraviolet) resistant material to prevent aging due to sunlight and rainfall exposure.
7.Fits Campervan, Trucks, Sprinter, Boats, Camping Vehicle, Vans, Excavators, Passenger cars, Agricultural Vehicles, Engineering vehicles, Ships, RV air conditioning etc.
Specification:
Integrated cooling and heating air conditioner
Layout structure：top mounted
Voltage : 12 V/24V(option)
Cooling capacity (w)：2300
Heating capacity (w)：1000
Current (A)：30-70
Refrigerant : R134A
Refrigerant charge (g): 600
Air volume (m³/h)：250-450
Speed range (r/min)：1600-3800
Brownout Recovery：12.5/2.5
Coefficient of performance：≥2.5
Power cord specification (mm²)：16 (2 to 5M)
Weight: 20 KG

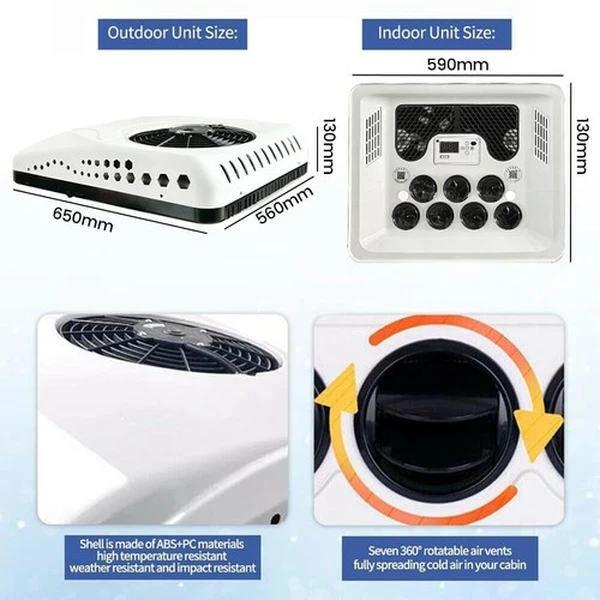

Host size: 650mm * 560mm *130mm
Notes :
1.It requires that the size of the sunroof is greater than 24cmx30cm and less than 49cmx59cm ( without a sunroof, it can be installed after opening the following positions)
2.Before adding refrigerant, vacuum treatment (15-20 minutes) is required, and then add refrigerant.
3.The amount of refrigerant injected should not exceed 500-600g. Be sure to use genuine R134a refrigerant.
4. Because the electric compressor current is very high, the wire is thin, which will lead to a lot of wire loss, please according to the wiring diagram requirements.
5. The pipeline connection should be as short as possible, in addition, the pipeline from the evaporator to the compressor needs to be added to the outside of the heat insulation layer.
6. The positive terminal of electric air conditioner must be connected to the positive terminal of the battery or the motor terminal, not to the meter, and the negative terminal to the negative terminal of the battery.

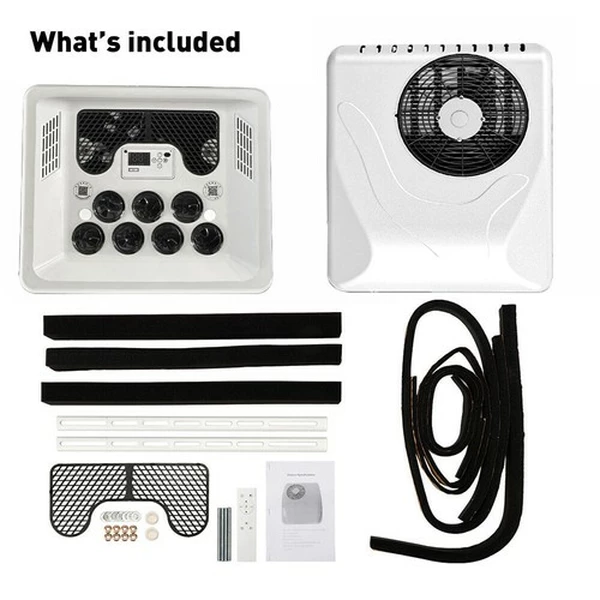

Package included:
Heating&Cooling A/C set*1
