Category:Air Conditioning & Heating
Goods No. : PAD7244
Put the air conditioner on: Place the air conditioner onthe roof and adjust the positionso that the bottom of the airconditioneris tightly attached tothe sealing strip. Check air conditioner effect: Turn on the air conditioner and use it normally.
Condition New
BTU 13500 BTU
Heating Capacity 1000W
Noise 23 DB
Applicable minimum skylight size 300mm * 170mm
Superseded Part Number rv roof top air conditioner, rooftop air conditioner, rv roof top ac unit, 12v ac unit, 12 volt ac unit, camper roof top air conditioner, rv air conditioner unit, camper ac unit, window air conditioner 13500 btu
Cooling Capacity 2300W
Weight 20 KG
Brand Unbranded

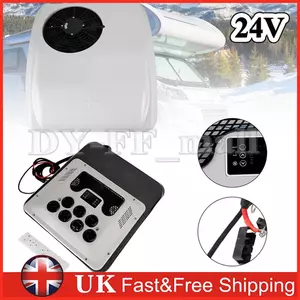

Type RV Rooftop Air Conditioner
Annual Energy Consumption 5000 Watt Hours
Capacity 4 Cubic Inches
Manufacturer Warranty 2 Years
Voltage 24 Volt
Fitment Universal
Features 100% Leak Tested, Durability Tested, No Drilling/Modification Needed, Patent Part
Universal Fitment Yes
Material Metal
Model TR -L02
Layout structure Top mounted
Note Ship with Refrigerant
EAN Does not apply
1. Clean the Window
2. Wrap Cotton Strip : Stick multiple sealing strips onthe roof according to the tilt andheight of the roof.
3. Wrap it Around: Repair the corners of thesealant strip to make it smooth.
4. Put the air conditioner on: Place the air conditioner onthe roof and adjust the positionso that the bottom of the airconditioneris tightly attached tothe sealing strip.
5. Adjust the Brace
6. Fixed brace: Install 4 screw pillars and fixthe fixing rod horizontally orvertically to the roof accordingto the size of the sunroof.
7. After the tie is fxed
8.Connect the pairharness line: The wiring harness is concealed inside the car.
9. Connect Power Supply: Connect the air conditioningpowerinterface and connect itto the car power supply.
10. Paste Sponge Strips
11. Secure Interior Panel
12. Check air conditioner effect: Turn on the air conditioner and use it normally.
The outdoor unit should be able to run normally 24 hours a day, 365 days a year under the conditions of ambient temperature -15～48℃, relative humidity ≤90%, sun and rain. Cooling is possible at this ambient temperature.
The main functions cover refrigeration, heating, ventilation and air purification, etc. The main components include compressors, condensers, liquid receivers, expansion valves, evaporators, fans and pipelines.
Its working principle is: the refrigerant circulates under the action of the compressor, and the condenser in the engine compartment is liquefied from a gaseous state to a liquid state, releasing heat; while in the car, it evaporates from a liquid state to a gaseous state, absorbing heat, thereby reducing the temperature inside the car. .
The product has been tested in the harsh environment of -28/-10℃ (PTC/heat pump) -50 ℃, the product runs normally, and no protection action occur,and it is suitable for the climate in the north and south of United States of America.

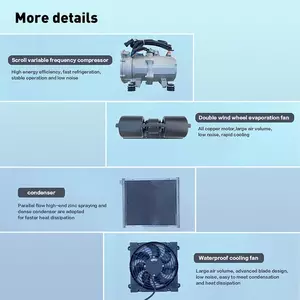

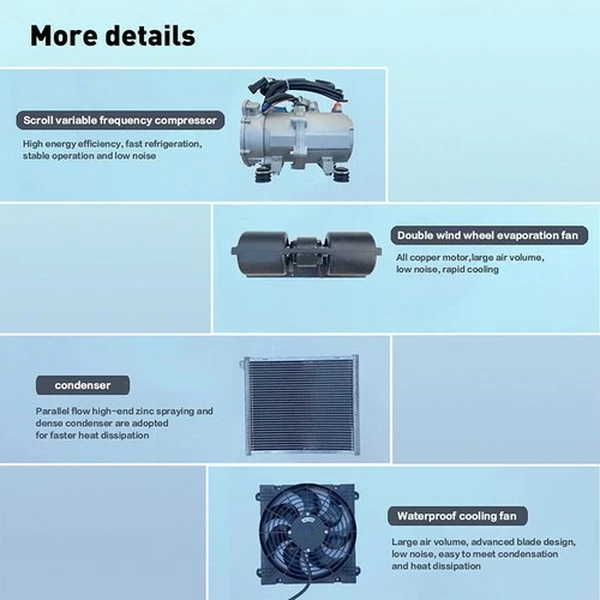

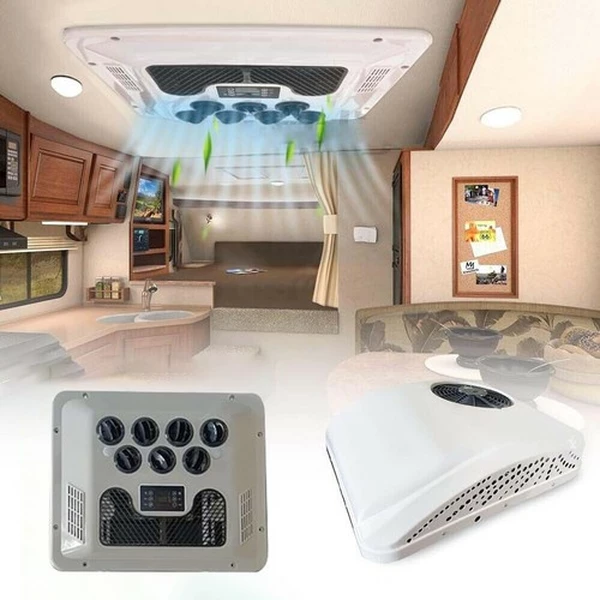

Features:

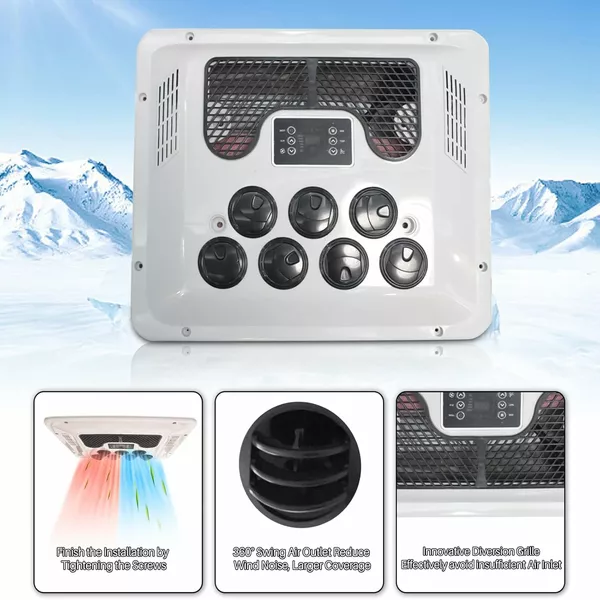

1.Double wind wheel evaporator fan, all copper motor, large air volume, low noise, rapid cooling
2.Scroll type inverter compressor, high energy efficiency, fast cooling, smooth operation, low noise.
3. Waterproof cooling fan, large air volume, advanced air blade design, low noise, easily meet the condensing cooling
4. The condenser adopts parallel flow high-end zinc spray, encrypted condenser, faster heat dissipation.
5.Square wave controller with 21 aluminum case，Intelligent frequency conversion controller

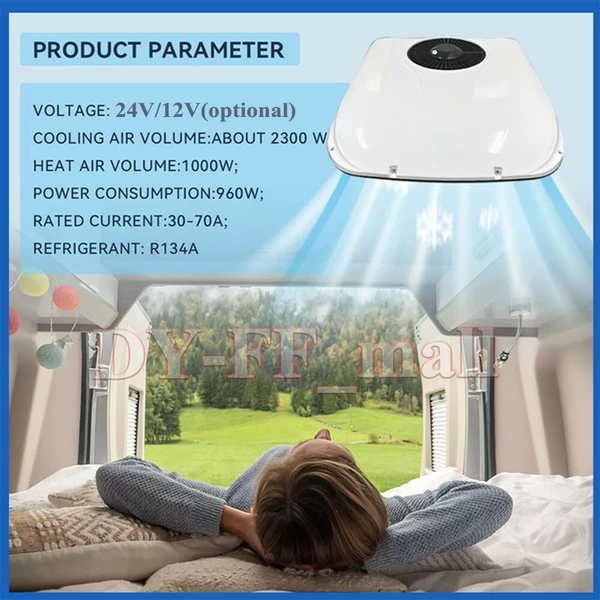

Specification:

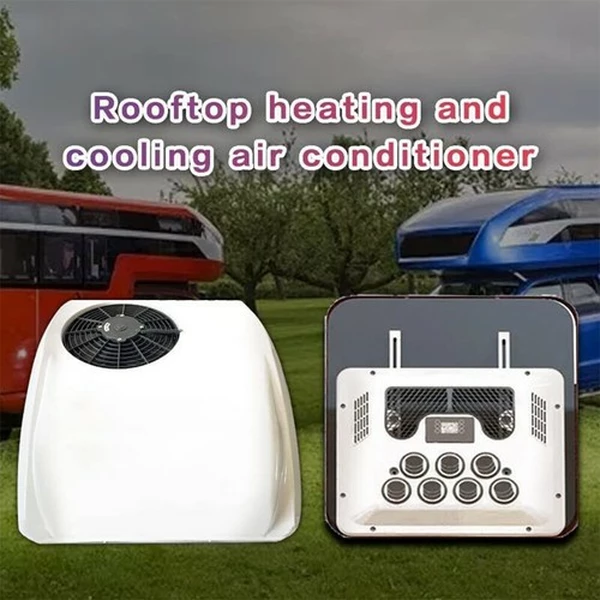

Integrated cooling and heating air conditioner
Model：TR -L02
Layout structure：Top mounted
Voltage : 24 V
Cooling capacity (w)：2300
Heating capacity (w)：1000
Power Consumption:300-850W;
Current (A)：30-50
Undervoltage protection：9-11.2
Refrigerant : R134A（included）
Refrigerant charge (g): 600
Air volume (m³/h)：250-450
Speed range (r/min)：1600-3800
Brownout Recovery：12.5/2.5
Coefficient of performance：≥2.5
Power cord specification (mm²)：16 (2 to 5M)
Weight: 20 KG

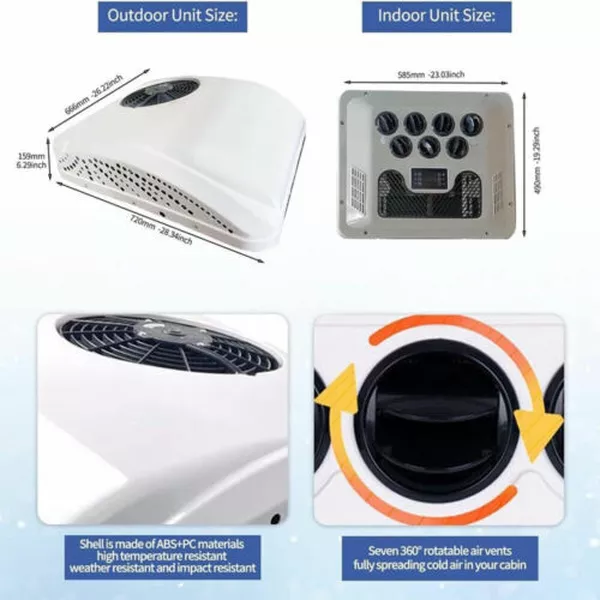

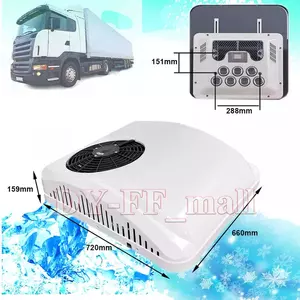

Host size: 666mm * 720mm *160mm

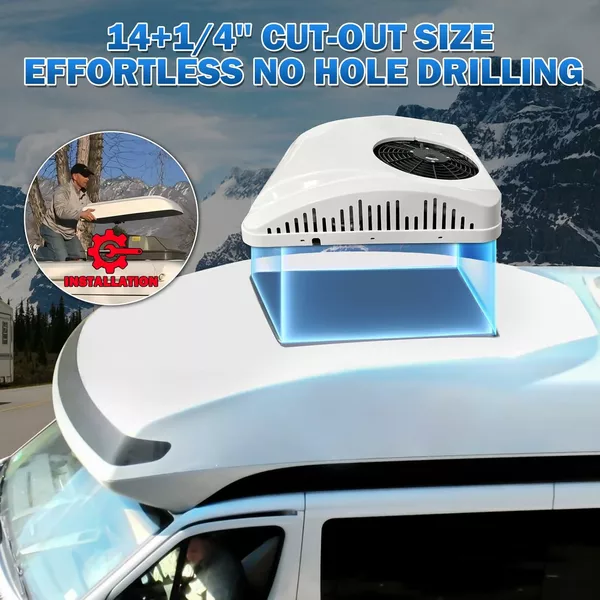

Applicable minimum sunroof size: 300mm * 170mm
Notes :
1.TR -L02 requires that the size of the sunroof is greater than 225mm×299mm and less than 440mm× 580mm ( without a sunroof, it can be installed after opening the following positions)
2.Before adding refrigerant, vacuum treatment (15-20 minutes) is required, and then add refrigerant.
3.The amount of refrigerant injected should not exceed 500-600g. Be sure to use genuine R134a refrigerant

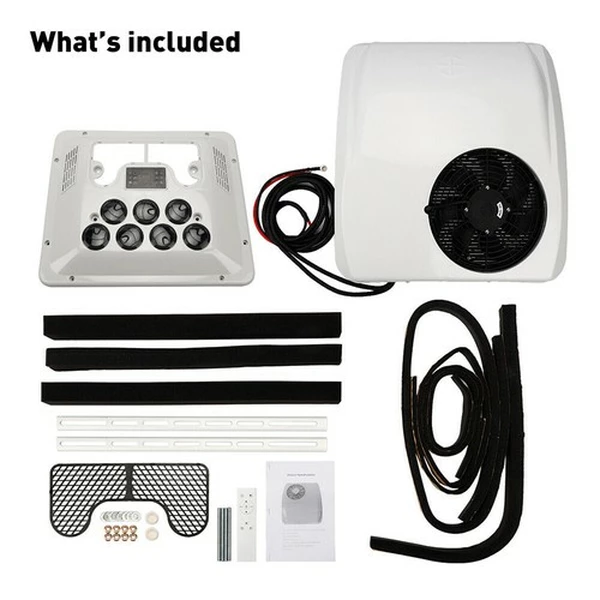

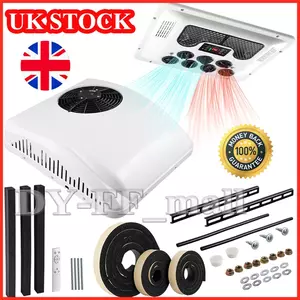

Package included:
1.One external machine
2.A set of sponge strips
3.2 fixed stretch bars
4.A set of interior panels
5.Remote control
6.Universal screw pack 1 pack
7.Water pipe
8.Installation drawings
9.Instruction manual
